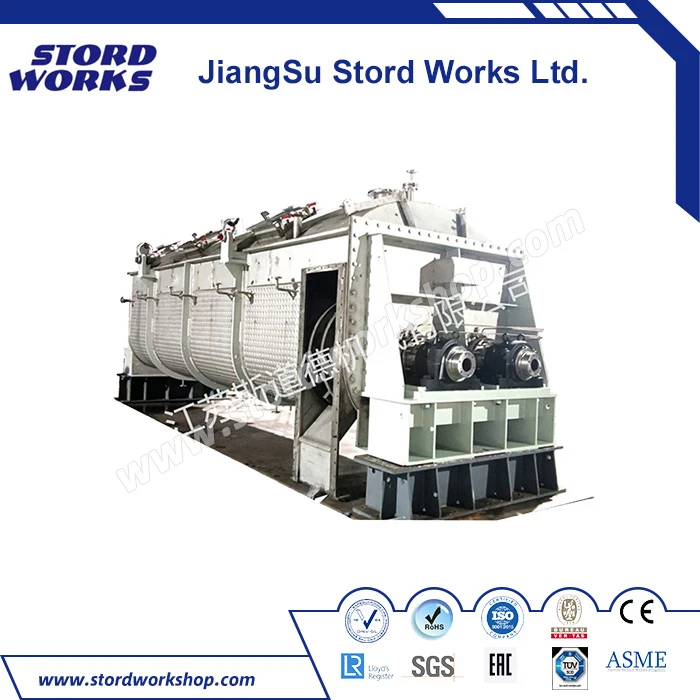

Continuous Hollow Blade Paddle Dryer

Jiangsu Stord Works Co., Ltd. is one of the most professional continuous hollow blade paddle dryer manufacturers and suppliers in China. If you're going to wholesale continuous hollow blade paddle dryer at competitive price, welcome to get quotation from our factory. Customized orders are welcome.

Product description

Continuous hollow blade paddle dryer is suitable for drying or cooling pasty, granular, powdery and pulpy materials. It carries out the processes of drying, cooling, heating, sterilization, reaction and combustion at low temperature. Special stirring and heat transfer blades have high heat transfer efficiency and self-cleaning function.

Working principle

Hollow wedge vanes or wedge vanes are concentrated on a hollow shaft. The heating medium flows through the blades from the hollow shaft. The heat transfer area within the effective volume is very high.

The temperature range of the heating medium is -40°C to 320°C. The heat source can be steam or liquid, such as steam, heat transfer oil, etc.

Indirect heating, no air to carry away heat. All heat is used to dry the material, except for insulation losses. The wedge-shaped blade surface is self-cleaning.

The relative movement of the product particles to the surface of the wedge-shaped blade may clean the material attached to the blade surface, so the heat transfer surface is clean during operation.

The shell of the hollow paddle dryer is omega-shaped. The shell is usually equipped with 2 or 4 hollow stirring shafts. To avoid any leakage of material and dust, there are sealed terminal covers and top covers on the housing. The heat transfer medium flows through the rotary joint, the jacketed shell and the hollow stirring shaft.

The heat transfer medium passes through the rotary joint, through the shell jacket and the hollow shaft. The hollow mixing shaft has different internal structures according to the type of heat medium to ensure the best heat transfer effect.

Features

(1) Low energy consumption: no heat is taken away by the air due to indirect heat. The outer wall of the dryer is not insulated. It consumes 1.2kg of steam to evaporate 1kg of water for drying the slurry.

(2) The cost of the paddle dryer system is low: the heat transfer surface per unit of effective volume is large, the processing time is short, and the equipment volume is small. Greatly reduced footprint and building space.

(3) Wide range of processing materials: heat-sensitive materials and materials requiring high temperature treatment can be treated with different heating media.

(4) Commonly used media are: steam, heat transfer oil, hot water and cooling water. (5) Continuous operation or intermittent operation, widely used in many fields.

(6) Less environmental pollution: no air is carried, and little powder is carried. The evaporation of solvent substances is small and easy to handle. For materials that may cause pollution or solvents that need to be recovered, a closed cycle can be used.

(7) Low operating cost: this structure. 1 hour/day of operator is enough for normal operation. Low stirring speed, reasonable structure and low maintenance cost.

(8) Smooth operation: the wedge-shaped blade will produce special compression, expansion and stirring effects, and the material particles will fully contact the heat transfer surface in the axial section. The differences in temperature, humidity and mixing effect in different axial regions are very small, thus guaranteeing the stability of the process.

(9) Low speed will not break granular materials or flake materials.
