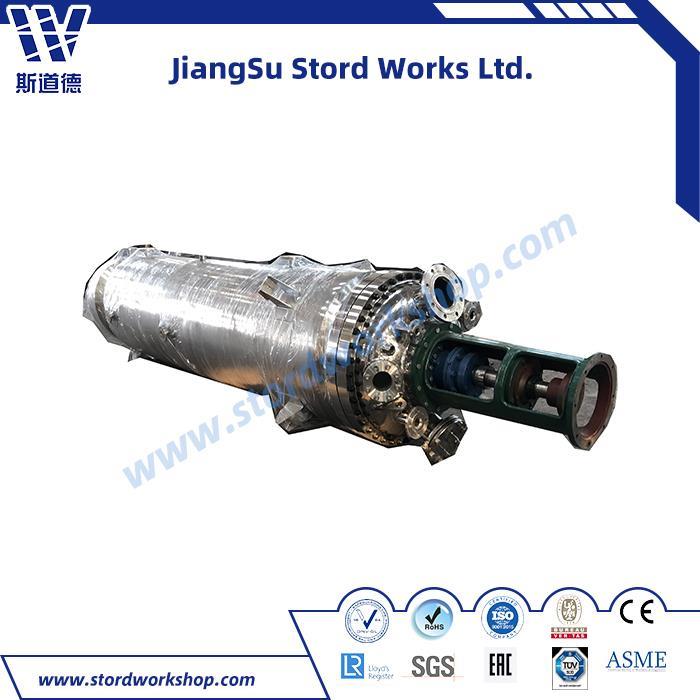

Onsite Installation Training Service Available Multi Stage 12 Inch Stainless Steel Wiped Film Evaporator

We have been engaged in the Extraction Tower, Waste Animal Batch Cooker factory, trough screw conveyors industry for a long time, and has accumulated a lot of service experience. With the development goal of ensuring global and all-round competitiveness, we will further develop into a professional manufacturer with international level in this field. This company complies with the industrial policy, and we adopt a modern management mechanism. After years of stable development, our company has established a complete system and continuously expanded the field of business.

Product introduction

Wiped film evaporator is the use of high-speed rotation into a uniform distribution of the liquid film evaporation or distillation carried out an efficient evaporation, distillation equipment, but also for deodrization, defoaming reaction and heating and cooling unit operation can be widely applied in Western pharmaceutical, food, light industry, petroleum, chemical industry, environmental protection and other industries.

Quick details

Working principle

It is mainly composed of a heating jacket and a scraper. The jacket is heated by steam. The scraper is mounted on a rotatable shaft. The scraper and the inner wall of the heating jacket are kept at a small gap, usually 0.5 to 1.5 mm. After the preheating, the liquid is added from the upper part of the evaporator in the tangential direction. Under the action of gravity and rotating scraper, the lower rotating film is distributed on the inner wall, and is continuously evaporated and concentrated during the descending process, and the finished liquid is discharged from the bottom. The secondary steam escapes from the top. In some cases, this evaporator evaporates the solution and provides a solid product directly at the bottom.

Features

1. High vacuum, low evaporation temperature, short residence time, high evaporation efficiency, continuous evaporation process.

2. Thermosensitive and non-combustible materials that are not suitable for residence time at higher temperatures have significant effects in performing evaporative desolvation operations.

3. High boiling point, high viscosity or easy to crystallize products (loose particles).

4. As a rectification column reboiler, it is combined into a thin film rectification unit for conventional rectification or dedicated rectification.

5. The evaporator wall is self-cleaning, less polluting and easy to clean.

6. Simple maintenance, small footprint and light weight.

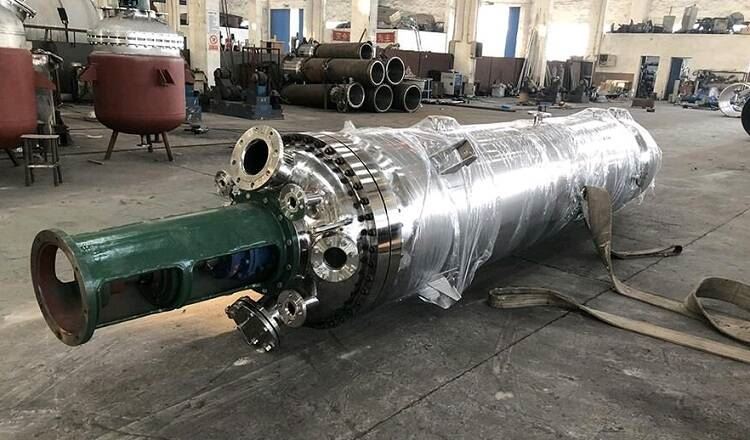

Production equipment

Technical parameter

Company information

Jiangsu Stord Works Ltd. is located in national machinery industrial park, which is at the coast of Taihu Lake, Fangqiao Town, Yixing City, Jiangsu Province. Our company has more than 180 employees, covers an area of 25000m2 and has more than 70 sets of various manufacturing and testing equipments. The maximum lifting capacity is 100T. The bending capacity for the thickest plate is up to 120mm.

We take pleasure in a really excellent name amongst our shoppers for Onsite Installation Training Service Available Multi Stage 12 Inch Stainless Steel Wiped Film Evaporator. We believe that quality is the foundation of survival, innovation is the core of development, and today's quality is tomorrow's market. Faced with the industry's fierce competition, the integrity management will always operate on the development of our company's most important position.
